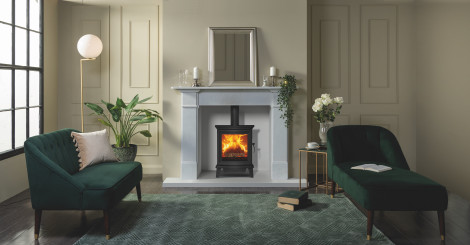

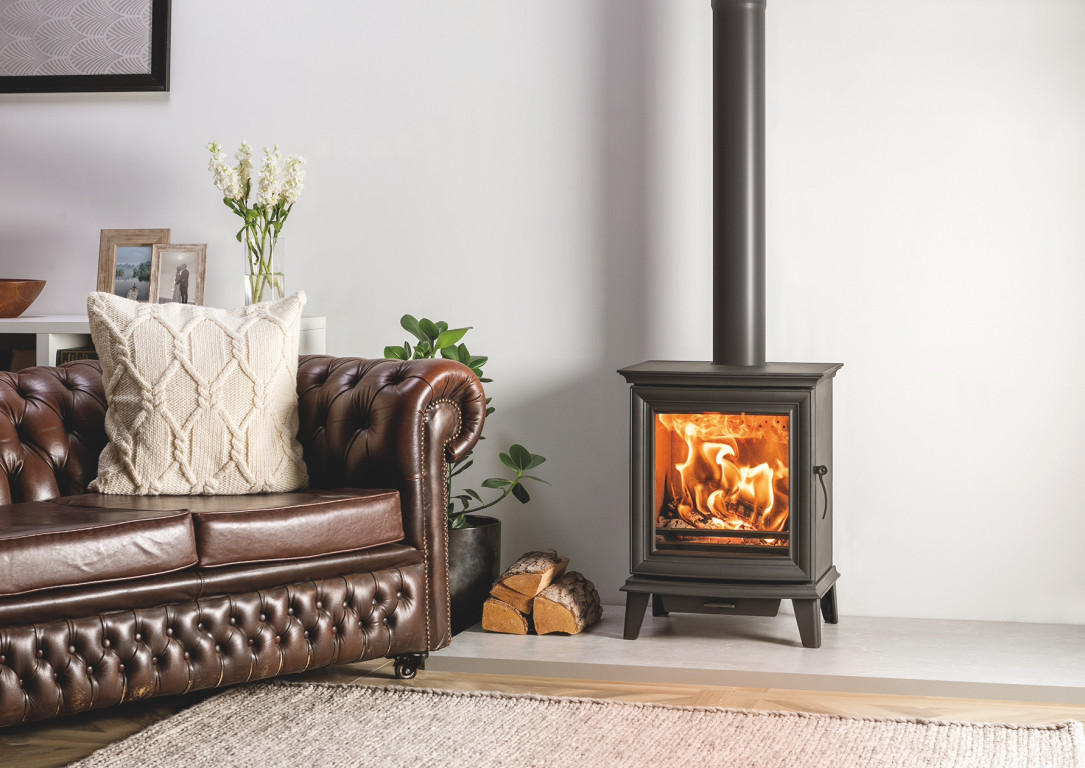

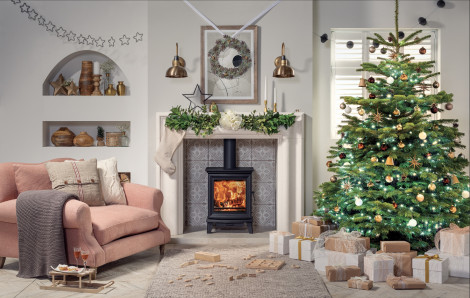

Elegantly styled, the Chesterfield convector range combines traditional cast iron detailing with a large stove window for a stunning view. At home in a town house or country cottage, this timeless Chesterfield 5 can also create a designer statement in contemporary settings.
Chesterfield 5 ECO | |
Overall dimensions | 472 x 614 x 397mm (w x h x d)* |
Woodburner | Yes |
Multi fuel (with external riddling) | Yes |
Heat out put | 5.0kW (2.0kW-7.0kW) |
High efficiency heating | Up to 80% |
Efficiency rating | A+ |
Max log length | 330mm |
Removable door handle | No |
Convector heat flow system | Yes |
Integral heat shield | Yes |
Ashpan | Yes |
Cleanburn | Yes |
Airwash | Yes |
Cast iron & heavy gauge steel | Yes |
Concealed hinges | Yes |
Boiler option | No |
Flue connection | 5" top or rear |
DEFRA Exempt for Smoke Control Area | Yes |
Ecodesign Plus | Yes |
Integrated External Air Connection (room sealed when fitted with external air supply) | Yes |
Room vent not normally required | Yes |
12mm hearth compatible | Yes |
Matt Black Finish | Yes |
Chesterfield 5 ECO |
Outdoor Air Kit - 80mm |

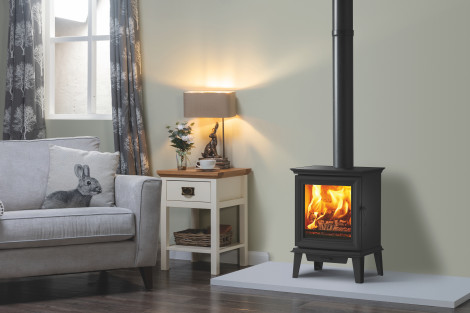

172mm Long Leg (overall hight 660mm) |
