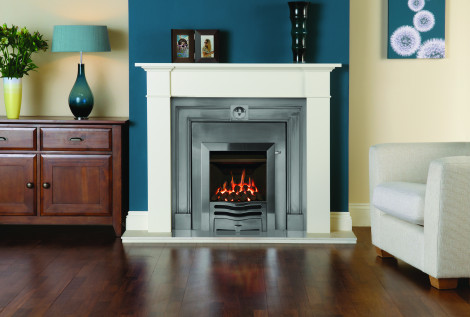

Logic HE with Wave Fret

  • Description
  • Facts
  • Options
  • Tech Specs

The Logic HE features a glass front and boasts the highest efficiency of all the Logic Fires
at up to 89%. The HE offers a choice of highly realistic log or coal fuel effects (1). With both conventional and balanced flue models, the HE is even suitable for homes without a chimney!

The Logic HE box draws cool room air into the bottom of the convection chamber the cool air is warmed as it passes over the hot surfaces of the chamber. Hot air is then emitted back into the room via the top convection slot. Maximum heat is radiated into the room via the glass front, with most models featuring specially designed non-reflective glass. The Logic HE balanced flue, Coal-effect fires have been specifically designed with reduced depth to allow for easy installation into the internal skin of a traditional cavity wall. Logic HE Coal-effect conventional flue fires feature specially moulded coals for added ease of installation.

Logic HE Inset Gas Coals Conventional Flue

Efficiency

89%

Heat out put

4.10 kW

Efficiency rating

B

Vent required

No

Manual control

Yes

Slide control

Yes

Remote control

Yes

Opening dimensions

410 x 560 mm (w x h)

Frame Size

509 x 601 mm (w x h)

Logic HE Inset Gas Logs Conventional Flue

Efficiency

84%

Heat out put

3.90 kW

Efficiency rating

C

Vent required

No

Manual control

No

Slide control

Yes

Remote control

Yes

Opening dimensions

410 x 560 mm (w x h)

Frame Size

509 x 601 mm (w x h)

Logic HE Inset Gas Coals Balanced Flue

Efficiency

86%

Heat out put

3.30 kW

Efficiency rating

C

Vent required

No

Manual control

Yes

Slide control

Yes

Remote control

Yes

Opening dimensions

420 x 560 mm (w x h)

Frame Size

509 x 601 mm (w x h)

Logic HE Inset Gas Logs Balanced Flue

Efficiency

86%

Heat out put

3.40 kW

Efficiency rating

C

Vent required

No

Manual control

No

Slide control

Yes

Remote control

Yes

Opening dimensions

420 x 560 mm (w x h)

Frame Size

509 x 601 mm (w x h)

Logic HE Inset Gas

Logs

Coal

Conventional flue

Balanced Flue

Manual Control

Slide Control

Remote control

Trim Colours

Polished Steel Effect

Brushed Steel Effect

Brass effect

Matt Black

Fret Colours

Polished Steel Effect

Brushed Steel Effect

Brass effect

Matt Black
