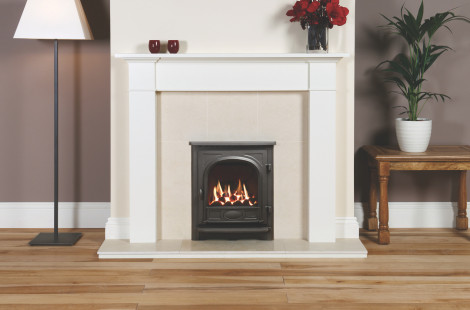

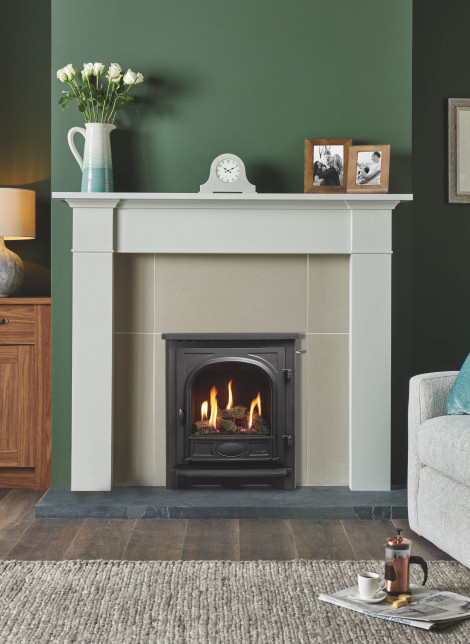

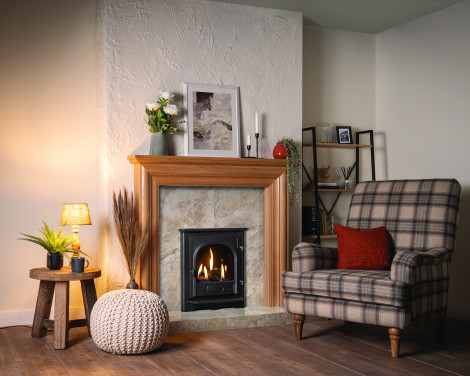

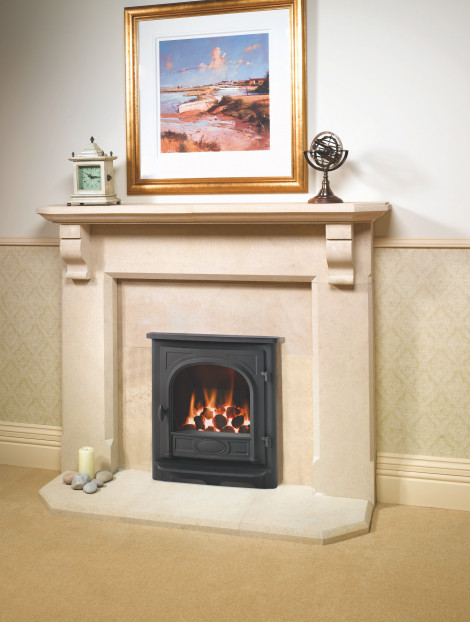

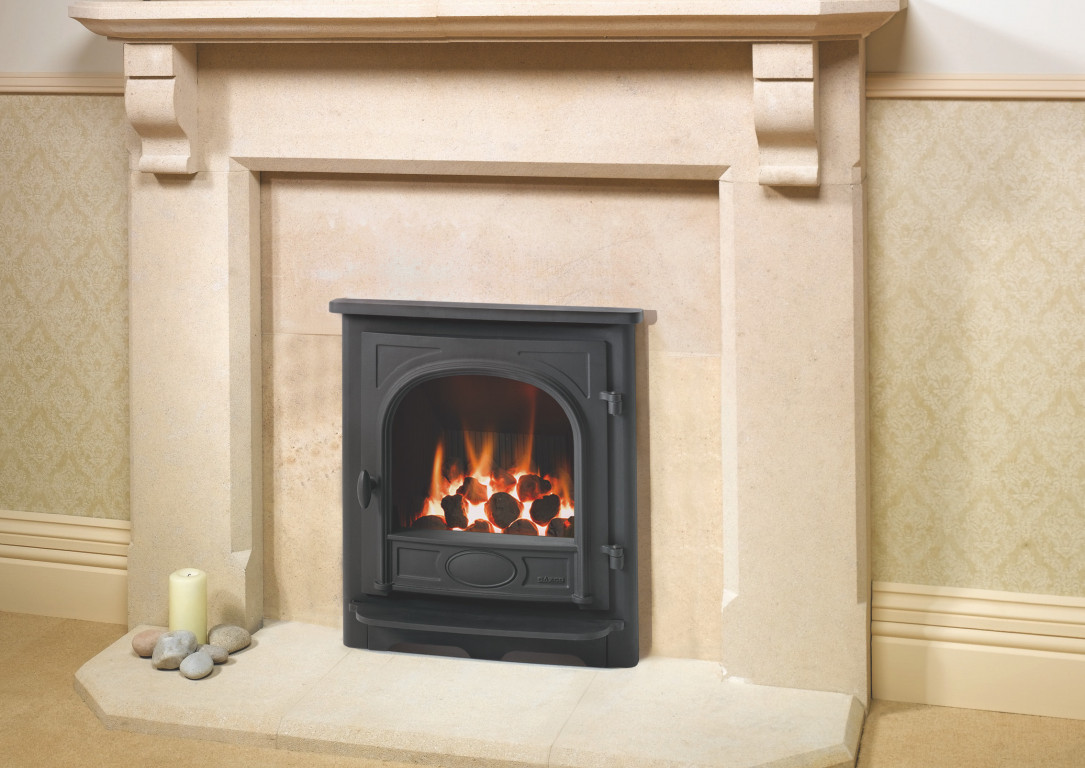

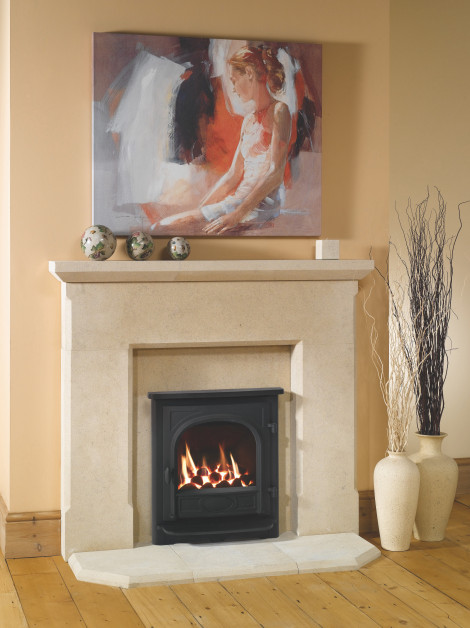

The Stockton gives you the feel of a woodburning stove but fits in to a standard inset opening. The inset is available with a choice of either Logs or Coal fuel effects and comes with three different control types: Manual control, Slide control or, for the absolute convenience, a Remote control for the ultimate luxury heating experience.
Stockton Inset Gas Coals Conventional Flue | |
Efficiency | 89% |
Heat out put | 4.10 kW |
Efficiency rating | B |
Vent required | No |
Manual control | Yes |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 410 x 560 mm (w x h) |
Frame Size | 539 x 600 mm (w x h) |
Stockton Inset Gas Logs Conventional Flue | |
Efficiency | 84% |
Heat out put | 3.90 kW |
Efficiency rating | C |
Vent required | No |
Manual control | No |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 410 x 560 mm (w x h) |
Frame Size | 539 x 600 mm (w x h) |
Stockton Inset Gas Coals Balanced Flue | |
Efficiency | 86% |
Heat out put | 3.30 kW |
Efficiency rating | C |
Vent required | No |
Manual control | Yes |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 420 x 560 mm (w x h) |
Frame Size | 539 x 600 mm (w x h) |
Stockton Inset Gas Logs Balanced Flue | |
Efficiency | 86% |
Heat out put | 3.40 kW |
Efficiency rating | C |
Vent required | No |
Manual control | No |
Slide control | Yes |
Remote control | Yes |
Opening dimensions | 420 x 560 mm (w x h) |
Frame Size | 539 x 600 mm (w x h) |
Stockton Inset Gas |
Logs |
Coal |
Conventional flue |
Balanced Flue |
Manual Control |
Slide Control |
Remote control |
